Aluminum Pergola

Models Available

Model Type 175

Description: Medium electric/manual model with a single blade that can do
3.5-4 meters.
Blade Width: 175mm
Blade Thickness: 30-40mm
Profile Thickness: 1.5mm
Beam Width: 175mm
Beam Thickness: 1.5-2.0mm
Thickness of Water Tank: 1.5mm
Column size: 150*150mm
Optional size: 180*180mm
Profile thickness: 2.0mm

Model Type 220

Description: Heavy-duty electric model with a single blade that can do 5 meters.
Blade Width: 220mm
Blade Thickness: 55mm
Profile Thickness: 1.8mm
Beam Width: 280mm
Beam Thickness: 2.5mm
Thickness of Water Tank: 1.8mm
Column size: 150*150mm
Optional size: 180*180mm
Profile thickness: 2.0mm

Styles Available

Simple Type

The whole includes: column, beam, flip blade, beam and blade lamp belt, motor, remote control and other accessories.

  • Including: column, beam, flip blade, blade lamp belt, motor, remote control and other accessories.
Note: Beam light belt is only available for type 220.

European

On the basis of simple style, added European decorative external sink.
Size: 170mm*200mm, thickness: 1.9mm
Increase the three-dimensional beauty, the shape is more atmospheric.

  • Including: European decorative sink, column, beam, flip board 100 blades, beam and blade lamp belt, motor, remote control and other accessories.
Note: Beam light belt is only available for type 220.

Luxury

On the basis of European style, the column outside the Roman column decorative plate, so that the pavilion overall more luxurious atmosphere, three-dimensional sense is stronger, suitable for villa luxury, star hotel and other places.

  • Including: beam, European decorative water trough, flip 100 blades, beam and blade lamp belt, motor, remote control and other accessories, European Roman column (standard with a column pack 2, optional pack 4).
Note: Beam light belt is only available for type 220.

Top-Level

Based on the European luxury model, wall lamps were added outside the column and fan lamps were added in
the middle of the top pavilion.

  • Including: European style Roman column, beam, European style decorative water tank, flip board 100 blades, beam blade lamp belt, column wall lamp, remote fan lamp, remote control, accessories, etc.
Note: Beam light belt is only available for type 220.

Product Features

Great Open Angle

Blade opening and closing Angle up to 150°, according to the demand to adjust shading degree and air intake volume.

Double Blade with
Flume

The louvers are equipped with side drainage systems. Even if they are opened after a heavy rain, the water will flow from the blades into the tank without drip.

Hidden Drainage

The concealed drainage system allows rainwater to drain directly from the top of the louvers into the columns and then out through underground drainage channels.

Dual Drainage System

Can effectively prevent the surrounding rain splash, the top surface can resist the duration of 2 minutes, the intensity of
up to 40-50 ml/s/square meters of rain.

Aluminum Alloy & Powder Coating

Made of high-quality 6063 aluminum alloy, set strong wind pressure resistance, corrosion resistance, deformation resistance in one; Surface high density powder spraying, no corrosion, no maintenance, safety and environmental protection, 20 years do not fade.

Flat Load 100 kg

The column is larger and thicker, the beam is larger and thicker, the blade is wider and thicker, and the real material is more stable and durable. Snow pressure resistance up to 110kg/ square meter.

Installation Mode

Ground Support

Wall Support

Usually Installed At

Villa Residence

Swimming Pool

Garden Court

Balcony

Homestay

Outdoor Catering

Product Accessories

Night Light Effect

  • The top blade is equipped with LED light belt, and the surrounding beam is equipped with LED light belt.
  • Flexible silicone waterproof 5000K brightness Led strip lamp (standard with warm light, optional).
  • Oko motor 1.
  • Oko waterproof receiver.
  • Transformer 1, multi-channel remote control.
  • Note: Beam light belt is only available for type 220.

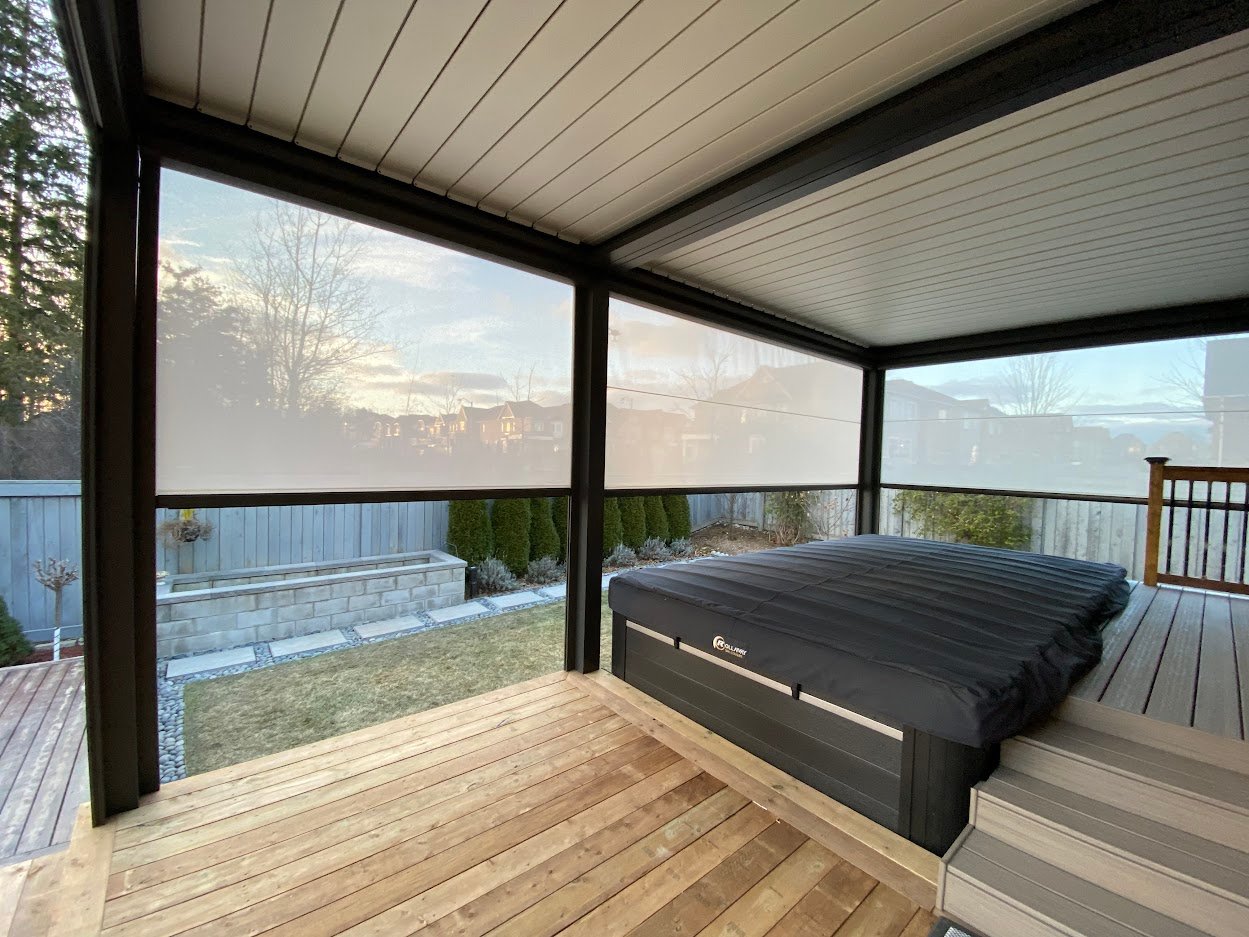

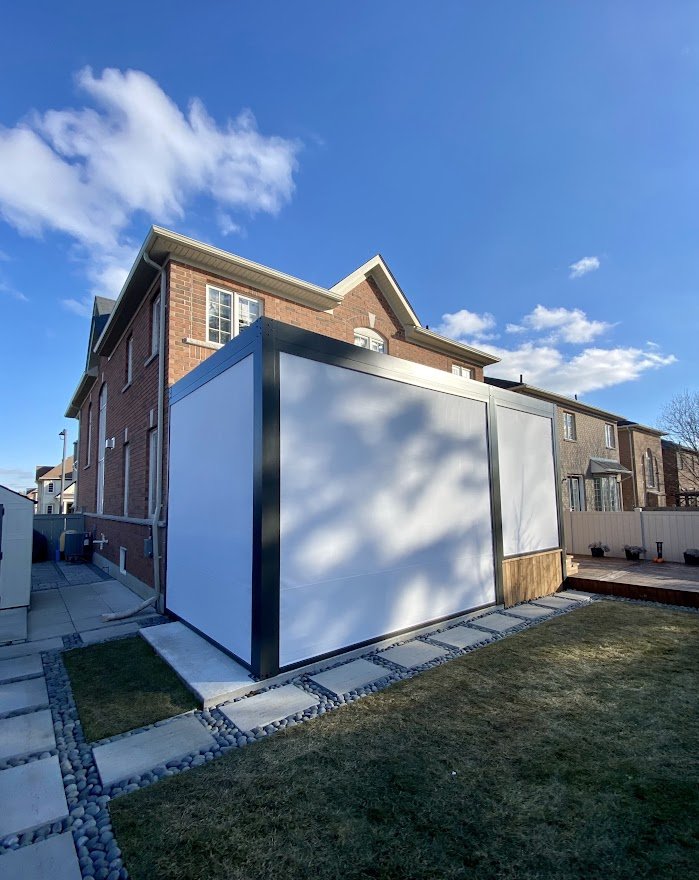

Matching Windproof Curtains

  • The pavilion can be equipped with electric windproof curtain around.
  • Glass fiber fabric/polyester fiber fabric is optional.
  • Optional opening rate 0%~10%.
  • Optional color of rolling curtain, supporting pattern customization.
  • Oke motor, equipped with multi-channel remote control, You can control the flip of louver, light switch, wind curtain up and down. Can also separate independent channels, control each product lift.
  • Note: Beam light belt is only available for type 220.

Product Size Description

Manufacturable SizeProduct Length
2000250030003500400045005000550060006500
2000★★★★★★★★★★
2500★★★★★★★★★★
3000★★★★★★★★★★
3500★★★★★★★★★★
Product Width4000★★★★★★★★★★
4500★★★★★★★★★★
5000★★★★★★★★★★
5500☆☆☆☆☆☆☆☆☆☆
6000☆☆☆☆☆☆☆☆☆☆
6500☆☆☆☆☆☆☆☆☆☆
